Speed display signs
ViaLED Base Street Lighting
Connects to the lamp post, internal battery for daytime.
Price€1,780 excl. VAT
ViaLED Base Mains – 230 V speed display sign
The large-format speed display sign for sites with a permanent mains supply: 32 cm digits readable from 200 m, rugged aluminium housing, two-colour and statistics options.
- Power supply230 V AC mains
- Digits3 digits — 32 cm high
- LEDsRed (red / green option)
Product added to cart
Public body? Order with a quote and purchase order: deferred payment, invoice via Chorus Pro (France).
- Dispatched within 5 to 7 working days, tracked express transport
- Secure payment by card, SEPA, Apple Pay or bank transfer
- Pre-sales advice: +33 4 58 00 15 74
About the ViaLED Base Mains

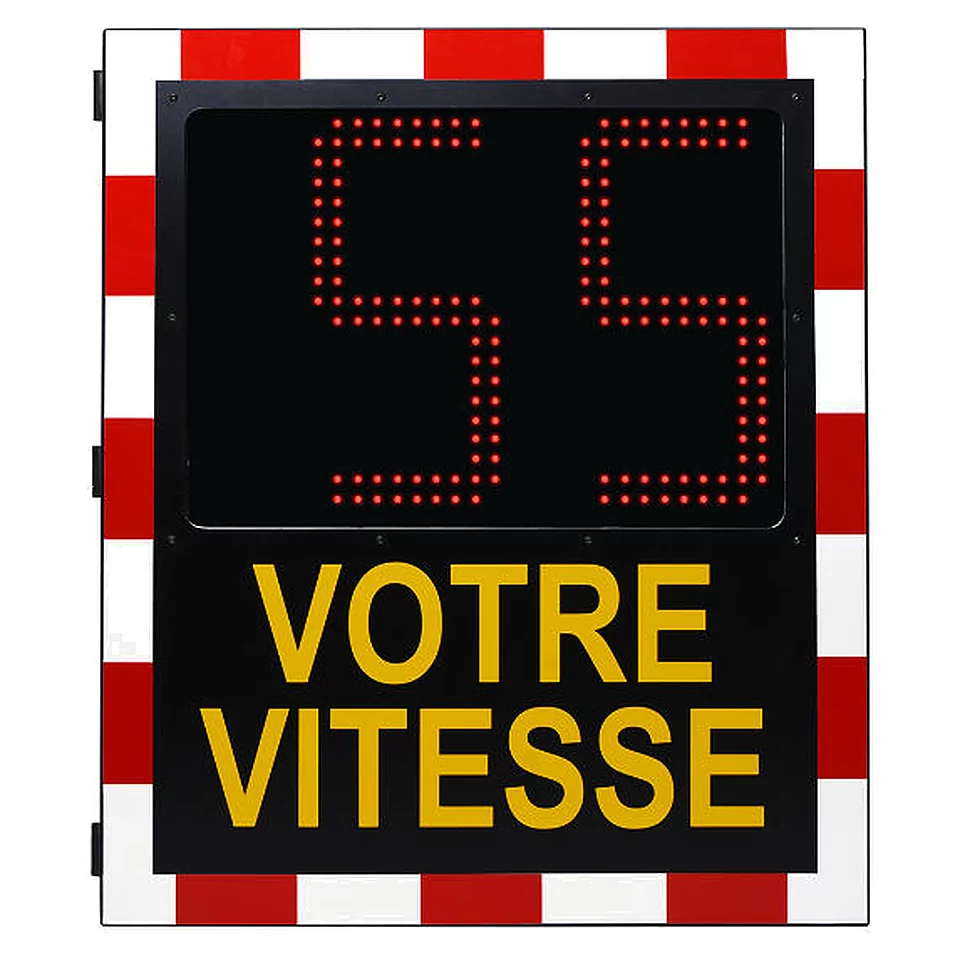

Connected to the 230 V mains, the ViaLED Base runs continuously, day and night. It constantly shows the speed of approaching vehicles when the limit is respected and flashes when it exceeds the limit set at installation.
Options

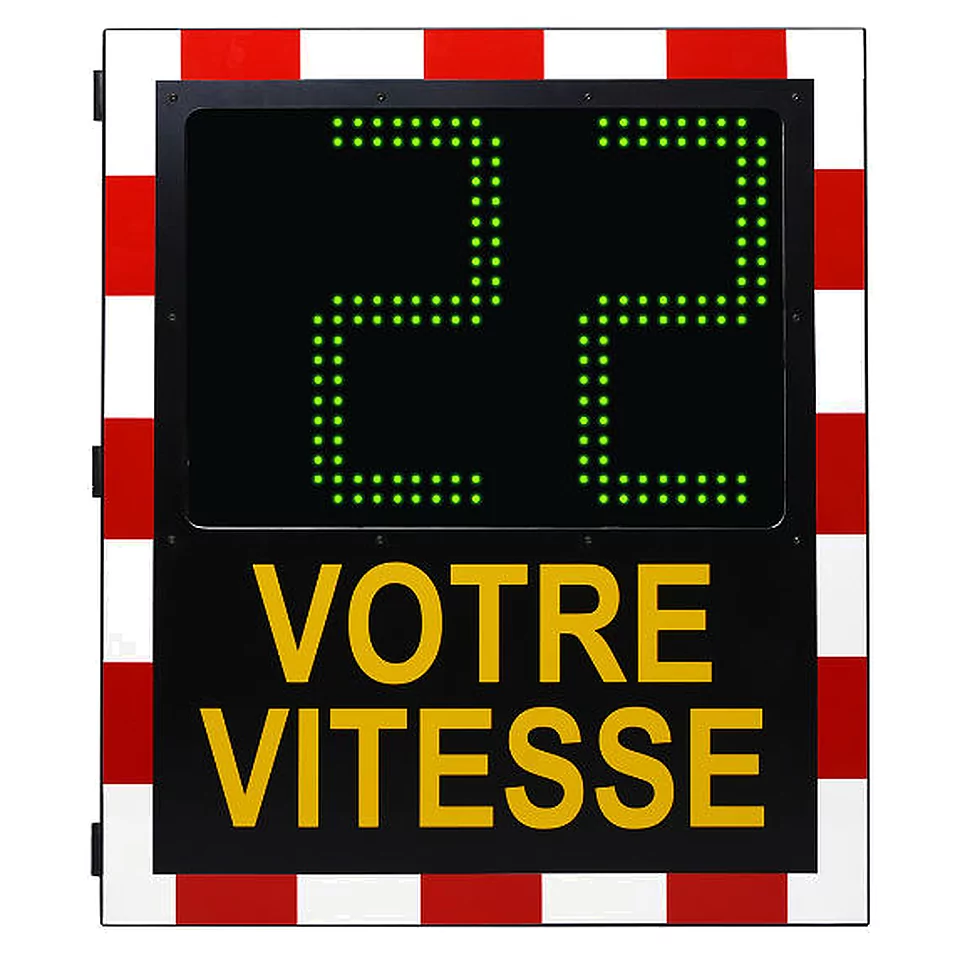

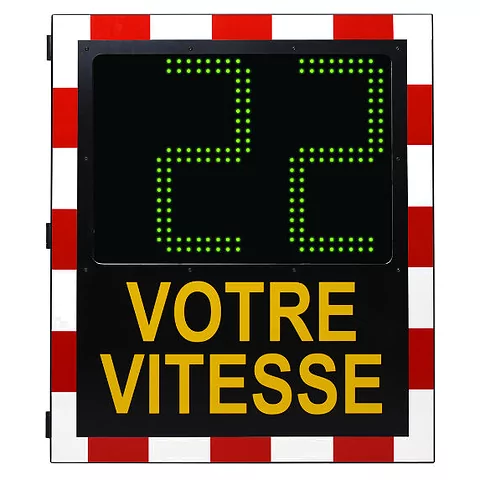

- Two-colour display: green below the limit, red above.
- Statistics pack: traffic counts and speeds collected on a USB key in CSV format, ready to analyse in Excel to justify traffic calming or measure the effect of a campaign.
SAFETY function
The display is blanked for vehicles exceeding the limit by more than 40 km/h, to avoid any one-upmanship.
No permanent power on site? Choose the street-lighting or solar version.
Technical specifications — ViaLED Base Mains
| Power supply | 230 V AC mains |
|---|---|
| Digits | 3 digits — 32 cm high |
| LEDs | Red (red / green option) |
| Display range | 1 – 199 km/h |
| Accuracy | ± 1 km/h |
| Radar | 24,125 GHz — 5 mW (K) |
| Measuring distance | 0 – 100 m |
| Visibility | 200 m |
| Dimensions | 750 × 650 × 100 mm |
| Weight | 15 kg |
| Package | 760 × 660 × 160 mm |
| Housing | Black-painted aluminium |
| Data | USB key, CSV files (Excel) — statistics pack optional |
| Operating temperature | −20 °C / +50 °C |
| SAFETY function | Display blanked above the limit + 40 km/h |
| Ref. | VB_SECTOR |
